90° Fast Connect PG connector for PROFIBUS DP (RS 485) connectivity in IP 20 environments. Because of its rugged metallic housing it has resistance against noise and connects the cable shielding with the device ground. The Fast Connect system saves time during assembly.

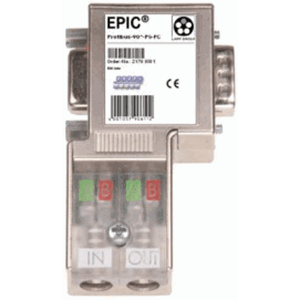

PROFIBUS DP IP 20 FC PG Connector (90°)
Description
TECHNICAL SPECIFICATIONS
General
- PG socket
- Fast Connect
- Metal case
- Switchable terminating resistor
- Baudrate: Max. 12 Mbps
- Cable diameter: 8 mm
- Connection: 4 FC terminals (A-B in, A-B out)
- Isolation class: IP 20
Ambient conditions
- Operating temperature: -0..60 °C
- Storage temperature: -20..+80 °C
- Relative humidity during operation: 10..75 %
Dimensions and Weight
- Dimensions (WxHxD) : 72 x 40 x 17 mm
- 40 g
