Robust 90° Fast Connect PG connector for PROFIBUS DP (RS 485) connectivity in IP 20 environments with diagnostic indicators.

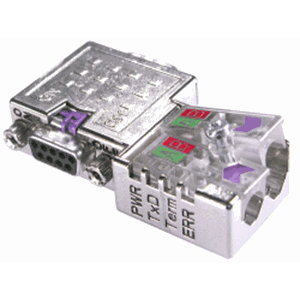

PROFIBUS DP Diagnostic FC PG Connector (90°)
Description
4 LEDs for bus/device status:
- Connector power supply (PWR)
- Transmission activity (TxD)
- Termination status (Term)
- Wrong termination resistance or false surge impedance (ERR)
Because of its rugged metallic housing it has resistance against noise and connects the cable shielding with the device ground.
The Fast Connect system saves time during assembly.
TECHNICAL SPECIFICATIONS
General
- PG socket
- Fast Connect
- Switchable terminating resistor
- 12 Mbps
- Cable diameter: 8 mm
- Metal case (die-cast zinc)
- Status monitoring via LEDs
Ambient conditions + dimentions
- Operating temperature: -20..+75 °C
- Dimensions (WxHxD) : +31 x 65 x 15.8 mm
